LMP-50S (2.5mm)

https://cnbcctv.odoo.com/web/image/product.template/58/image_1920?unique=1706a71

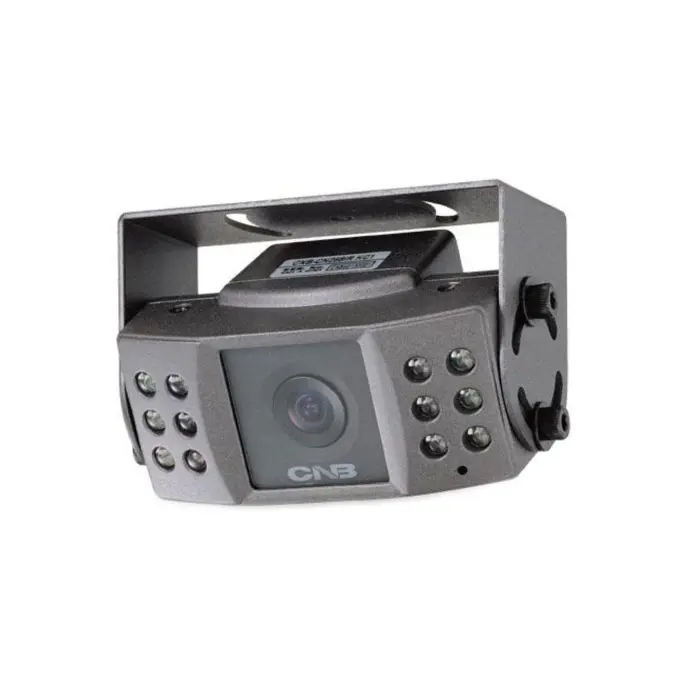

LMP-50S (2.5mm) 960H Indoor IR Specialty Camera

0.00 0.0 USD 0.00

0.00

    This combination does not exist.

    Features

    • 1/3" High Sensitivity CCD (960H)
    • High Resolution: 700 TV Lines
    • 2.5mm Built in Fixed Lens
    • 11 Built-in IR LEDs
    • 10m Max. IR Range
    • Min. Illumination: 0.00 Lux (IR LED On)
    • Auto White Balance
    • Coaxial Communication(Pelco-C)
    • Audio & Mirror Function
    • 12VDC operation


    Specification

    Model

    LMP-50S (2.5mm)

    Signal System

    NTSC

    Scanning System

    2:1 Interlace

    Scanning Frequency (H)

    15.734 kHz

    Scanning Frequency (V)

    59.94 kHz

    Image Sensor

    1/3 Inch High Sensitivity CCD (960H)

    Effective Pixels

     976(H) x 582(V) 570K

    Horizontal Resolution

    700 TV Lines

    Video Output

    1.0V p-p (75Ω, Composite)

    Audio Output

    2V p-p

    S/N Ratio

    More than 52dB (AGC Off)

    Lens

    Built-in Fixed Lens (f=2.5mm)

    Min.Illumination

    Day (0.05 Lux), Night (0.00 Lux, IR LED On)

    IR LED and Sensor

    A.I. IR Technology*, IR LED 12EA

    IR LED Visible Range

    Max. 10m

    White Balance

    Auto

    AGC

    0~20

    Communication

    Pelco Coaxitron (Pelco-C)

    Shutter Speed

    1/60~1/120,000 Sec.

    1/50~1/120,000sec.

    Supplied Voltage

    DC10V~14V (Recommendation DC12V±0.5V)

    Power Consumption

    Max. 2W

    Dimensions (WxHxD)

    83.2 x 43.0 x 47.7 mm
